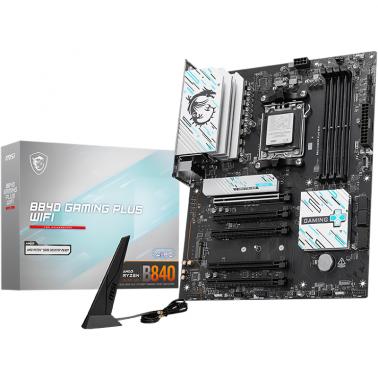

MSI B840 Gaming Plus WIFI AM5 ATX Motherboard (B840 GAMING PLUS WIFI)

SPECIFICATIONS:ChipsetAMD B840CPUSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8000+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 5600+ MT/s Supports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the products Support page or visit https://www.msi.com/support/.Onboard Graphics1x HDMISupport HDMI 2.1, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot5x PCI-E x16 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)AudioRealtek ALC8977.1-Channel High Definition AudioStorage2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices4x SATA 6G M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 3.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports up to PCIe 3.0 x2 (For Ryzen 8500/ 8300 Series processor) *Please refer to the manual for M.2 SSD heatsink restrictions.RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 for M.2 NVMe storage devicesUSB4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 5Gbps Type C (Front)1x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)LANRealtek 8125BG 2.5G LANInternal IO1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Combo Fan (Pump_Sys Fan)4x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 5Gbps Type C portsWireless LAN & BluetoothWi-Fi 7 SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM * 6GHz band support may depend on every countrys regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendors website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.LED Feature4x EZ Debug LEDBack Panel PortsClear CMOS ButtonUSB 10Gbps (Type-A)USB 2.02.5G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMI 2.1 PortUSB 10Gbps (Type-C)USB 5Gbps (Type-A)Operating SystemSupport for Windows 11 64-bitBox ContentB840 GAMING PLUS WIFI MotherboardQuick Installation GuideEuropean Union Regulatory NoticeEZ Wi-Fi Antenna1 to 2 EZ Conn-Cable (V1)SATA CableEZ M.2 Clip IIEZ M.2 Clip II RemoverPCB InfoATX243.84mmx304.8mm
