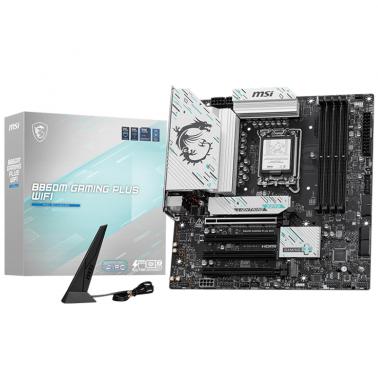

MSI B860M Gaming Plus WIFI LGA 1851 DDR5 mATX Motherboard (B860M GAMING PLUS WIFI)

SPECIFICATIONS:ChipsetINTEL B860CPUSupports Intel Core Ultra Processors (Series 2)LGA 1851Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency: 1DPC 1R Max speed up to 8800+ MT/s 1DPC 2R Max speed up to 7200+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM The DIMM slots on this motherboard only have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the products Support page or visit https://www.msi.com/support/.Onboard Graphics1x HDMISupport HDMI 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*1x Type-C DisplayPortThunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot4x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)AudioRealtek ALC897 Codec7.1-Channel High Definition AudioStorage3x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesOnboard Thunderbolt1x Thunderbolt4 ports (Rear)Supports up to 40Gbps transfer rate with Thunderbolt devicesSupports up to 20Gbps transfer rate with USB4 devicesSupports up to 10Gbps transfer rate with USB 3.2 devicesSupports up to 5V/3A,15W power chargingEach port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devicesSupports up to 8K displayUSB2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)1x USB 5Gbps Type C (Rear)4x USB 5Gbps Type A (Front)1x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Front)LANIntel Killer E5000 5Gbps LANInternal IO1x Thunderbolt5 card connector(JTBT5, support RTD3)1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)3x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 10Gbps Type C portsWireless LAN & BluetoothIntel Killer BE1750x Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM * 6GHz band support may depend on every countrys regulations and Wi-Fi 7 will be ready in Windows 11 SV3.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.LED Feature4x EZ Debug LEDBack Panel PortsDisplay PortClear CMOS Button5G LANWi-Fi / BluetoothAudio ConnectorsHDMIThunderbolt 4 40Gbps (Type-C)USB 2.0USB 5Gbps (Type-A)USB 5Gbps (Type-C)USB 10Gbps (Type-A)Operating SystemSupport for Windows 11 64-bitBox ContentMSI B860M GAMING PLUS WIFI MotherboardQuick Installation GuideEuropean Union Regulatory NoticeEZ Wi-Fi Antenna1 to 2 EZ Conn-Cable (V1)SATA CableEZ M.2 Clip
