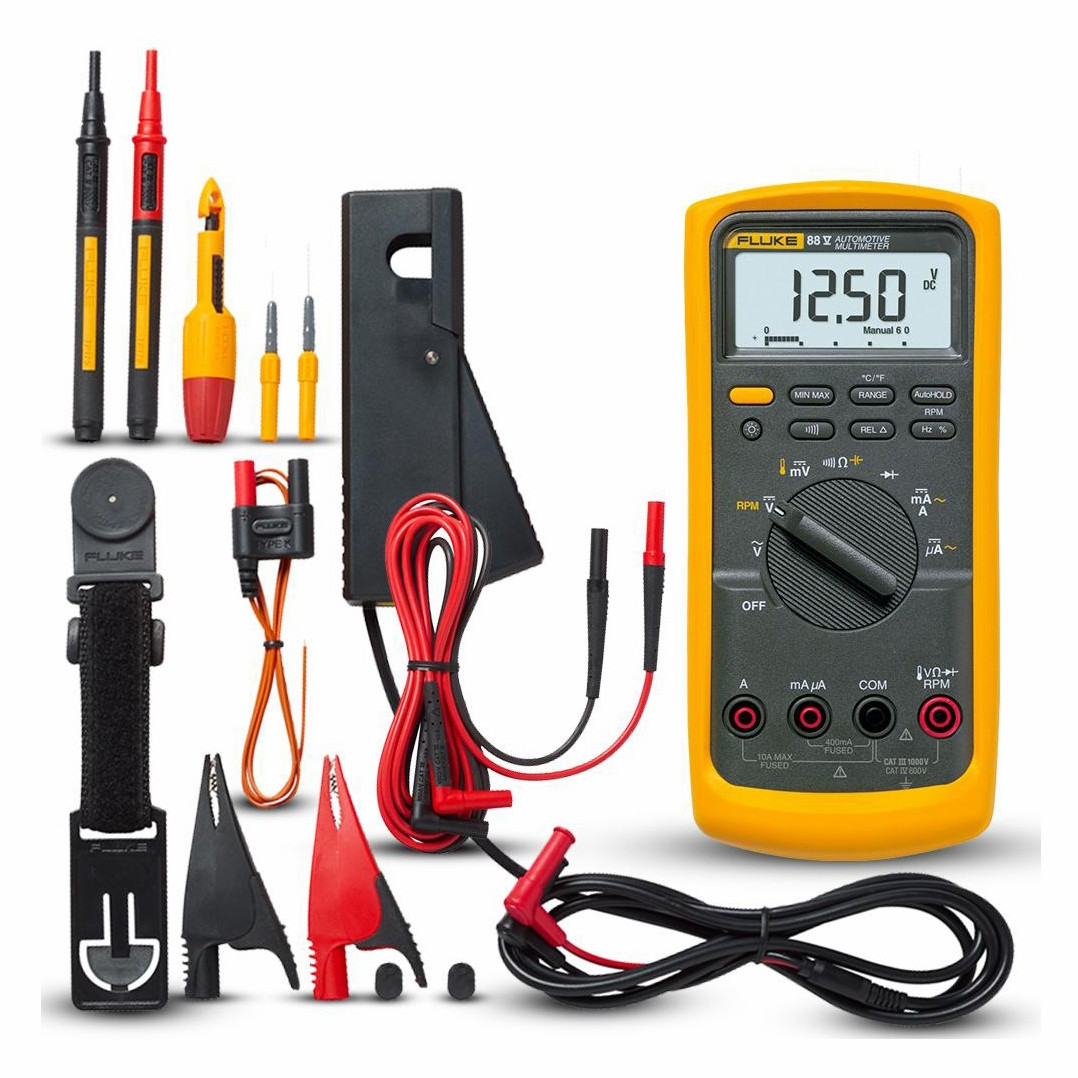

Fluke 88V/A-KIT - Automotive Multimeter Combo Kit

The Fluke 88V has improved measurement functions, troubleshooting features and accuracy to solve more problems on conventional and hybrid vehicles. The 88V is made in the U.S.A. and carries the industry leading lifetime warranty. The Fluke 88V operates very similar to the classic Fluke 88, but with more problem solving power, safety, convenience and impact protection. Includes

TL224 silicone test leads AC285 long reach alligator clips TP220 test probes RPM 80 inductive RPM TPAK ToolPak™ Magnetic Meter Hanging Kit 80BK temperature probe Two automotive backprobe pins Insulation piercing probe C800 durable carrying case Holster 9V battery (installed) Getting started manual

Features

Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument Magnetic hanger (included with kit) for easy set-up and viewing while freeing your hands for other tasks Peak min/max to capture intermittent events as short as 250 micro seconds Large digit display with bright, two-level backlight makes the Fluke 88V significantly easier to read than the old Fluke 88

Specifications

DC Voltage (DCV)

Maximum voltage: 1000 V Accuracy: ±(0.1% + 1) Best resolution: 0.01 mV

AC Voltage (ACV)

Maximum voltage: 1000 V Accuracy: ±(0.5% + 2) AC bandwidth: 5 kHz Best resolution: 0.01 mV

DC Current

Maximum amps: 10 A Amps accuracy: ±(0.4% + 2) Best resolution: 0.001 mA

AC Current

Maximum amps: 10 A Amps accuracy: ±(1.2% + 2) Best resolution: 0.001 mA

Resistance

Maximum resistance: 50 MΩ Accuracy: ±(0.4% + 1) Best resolution: 0.1 Ω

Capacitance

Maximum capacitance: 9,999 µF Accuracy: ±(1% + 2) Best resolution: 0.01 nF

Frequency

Maximum frequency: 200 kHz Accuracy: ±(0.005% + 1) Best resolution: 0.01 Hz

Duty Cycle

Maximum duty cycle: 99.9% Accuracy: Within 2% per kHz + 0.1% Best resolution: 0.1%

Temperature Measurement

-200.0 °C to 1090 °C (-328.0 °F to 1994.0 °F), 1.0%, excluding probe 80 BK temperature probe

-40 °C to 260 °C (-40 °F to 500 °F) Accuracy: 2.2 °C or 2%, whichever is greater

Conductance

Maximum conductance: 60.00 nS Accuracy: ±(1.0% + 10) Maximum resolution: 0.01 nS

Operating Range

Operating temperature: –20 °C to 55 °C Storage temperature: –40 °C to 60 °C

Physical

Size: 5.2 × 9.8 × 20.1 cm (2.06 × 3.86 × 7.93 in) Weight: 624 g (22 oz)
