Fluke FLK-3000-FC-IND - Industrial System - FC Series

The Fluke FC Wireless Industrial System lets you work on electrical panels faster, safer, easier De-energize the cabinet, connect the remote modules, close the cabinet and reenergize. The FC Wireless Industrial System displays the readings wirelessly on the 3000 FC Wireless Digital Multimeter. Connect the three FC Wireless iFlex AC Current Module to your test points, and view the results from all three phases in 1/3 the time and cost of current test methods or connect the FC Wireless AC Voltage Module and view both voltage and current measurements simultaneously. You’ll get better answers, faster, and spend less time in full PPE. From short distances, you can even view readings from modules through closed electrical panels. Plus the Fluke Connect® remote modules capture up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm’s way. Includes

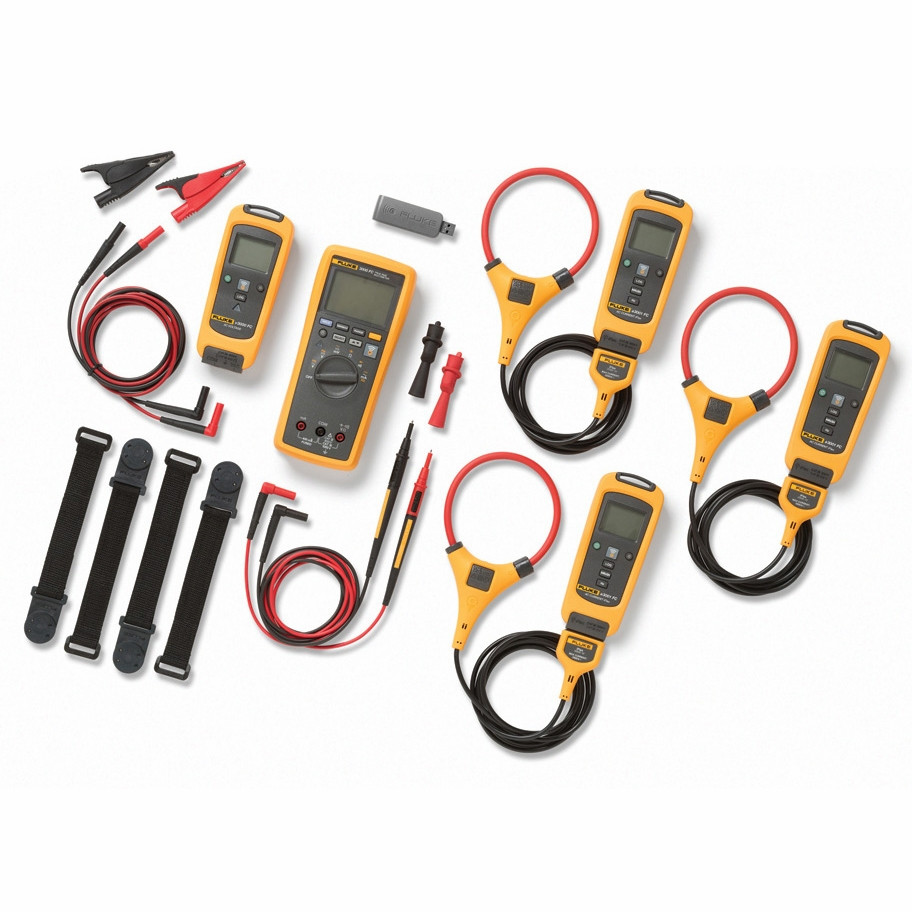

Fluke 3000 FC Series Wireless Multimeter Fluke a3001 FC Wireless iFlex AC Current Module (3) Fluke v3000 Voltage Module TL224 Test Leads TL175 Test Leads AC285 Alligator Clips AC175 Alligator Clips iFlex i2500-10 Flexible Current Probe (3) Magnetic hanging strap

Features Fluke 3000 FC Series Wireless Multimeter

AC and DC voltage measurements to 1000V AC and DC current with 0.01 mA resolution Continuity, resistance, diode test, capacitance and frequency measurements MIN/MAX recording CAT III 1000 V, Cat IV 600 V; IP54

Fluke v3000 FC Wireless AC Voltage Module

Measurements up to 1000 V true-RMS AC Use as a standalone meter or as part of the system A logging function for recording and saving up to 65,000 readings

Fluke a3001 FC Wireless iFlex® AC Current Module

Measure up to 2500 A AC Use as a standalone meter or as part of the system Logging function for recording and saving up to 65,000 readings Inrush function

Specifications Fluke 3000 FC Series Wireless Multimeter

Maximum voltage between any terminal and earth ground: 1000 V DC or AC RMS Ω fuse protection from A inputs: 0.44 A (44/100 A, 440 mA), 1000 V FAST fuse (Fluke specified part only) Display (LCD)

Update rate: 4/sec Volts, amps, ohms: 6000 counts Frequency: 10,000 counts Capacitance: 1,000 counts

Battery type: Three AA alkaline batteries (NEDA 15A, IEC LR6) Battery life: 250 hours minimum RF communications: 2.4 GHz ISM band RF communication range

Open air, unobstructed: Up to 20 m Obstructed (sheetrock wall): Up to 6.5 m Obstructed (concrete wall or steel electrical enclosure): Up to 3.5 m

Temperature

Operating: –10 °C to 50 °C Storage: –40 °C to 60 °C

Temperature coefficient: 0.1 × specified accuracy per °C (18 °C or 28 °C) Relative humidity

0% to 90% (0 °C to 35 °C) 0% to 75% (35 °C to 40 °C) 0% to 45% (40 °C to 50 °C)

Altitude

Operating: 2,000 m Storage: 12,000 m

Electromagnetic compatibility

EN 61326-1:2006; EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006 ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C (Sections 15.207, 15.209, 15.249) FCC ID: T68-FDMMBLE; IC: 6627A-FDMMBLE

Safety compliance

ANSI / ISA 61010-1 (82.02.01), 3rd edition CAN / CSA-C22.2 No. 61010-1-12, 3rd edition UL 61010-1, 3rd edition IEC / EN 61010-1:2010

Certifications: CSA, FCC, CE Ingress protection (IP) rating: IP54 Pollution degree: 2 Size (H × W × L): 4.75 × 9.3 × 20.7 cm (1.87 × 3.68 × 8.14 in) Weight: 340 g (12 oz) Warranty: Three years

Fluke v3000 FC Wireless AC Voltage Module

AC voltage

6.000 V: Resolution 0.001 V 60.00 V: Resolution 0.01 V 600.0 V: Resolution 0.1 V 1000 V: Resolution 1 V Accuracy

45 Hz to 500 Hz: 1.0% + 3 500 Hz to 1 kHz: 2.0% + 3

Specified range: 1%…
