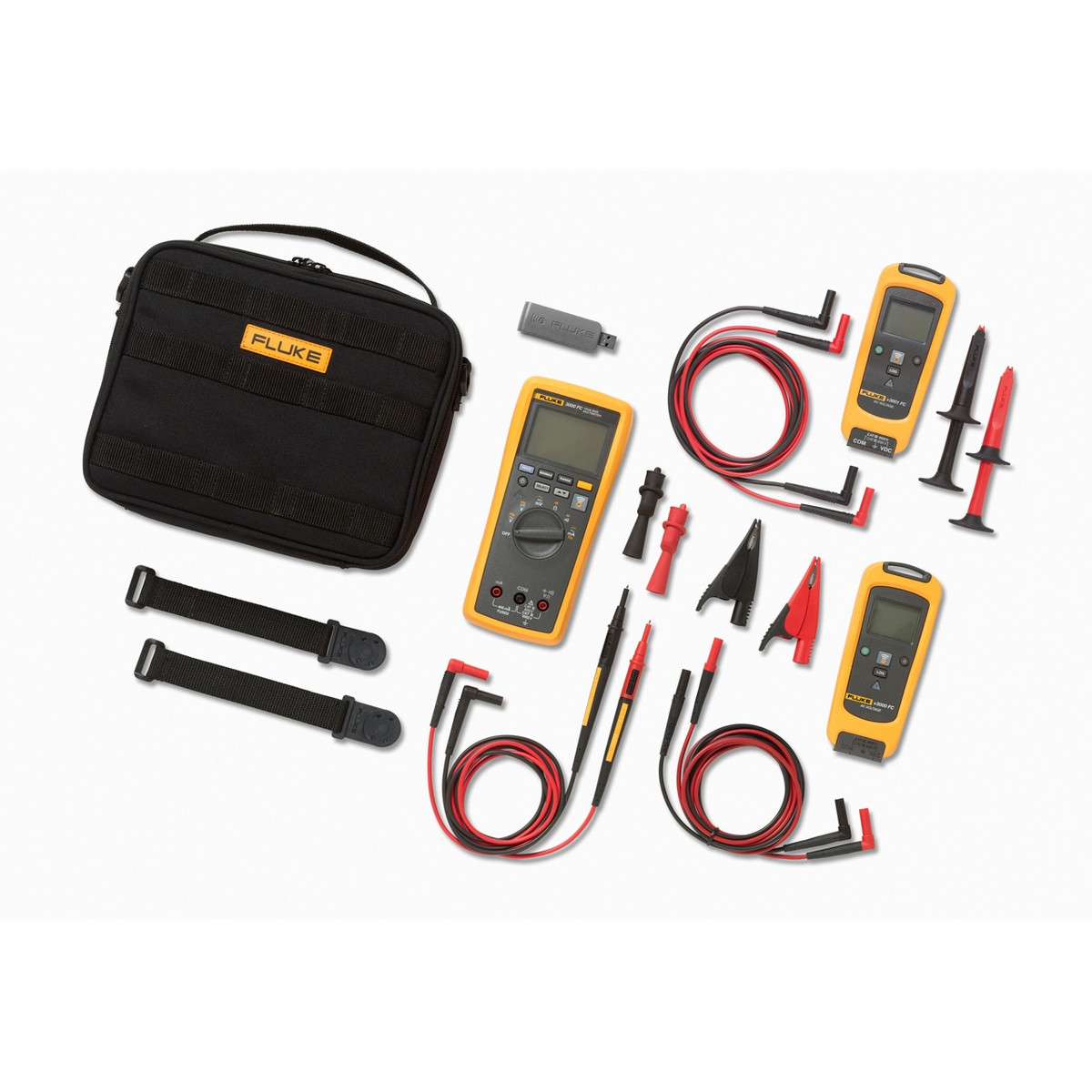

Fluke FLK-v3003-FC-KIT - Wireless AC/DC Voltage Measurement Kit - FC Series

Connect the v3000 FC Wireless AC Voltage and v3001 FC Wireless DC Voltage Modules to your test points, and view the results up to 20 meters away on the 3000 FC Wireless Digital Multimeter. You'll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems, as a stand-alone measurement tool or combine with other Fluke Connect® modules as a system for multiple measurements. From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the FC Wireless Voltage Modules capture up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm's way. Includes

TL175 Test Leads TL224 Test Leads TL222 Test Leads AC175 Alligator Clips AC285 Alligator Clips AC220 Alligator Clips Magnetic hanging straps

Features Fluke 3000 FC Series Wireless Multimeter

AC and DC voltage measurements to 1000V AC and DC current with 0.01 mA resolution Continuity, resistance, diode test, capacitance and frequency measurements MIN/MAX recording CAT III 1000 V, Cat IV 600 V; IP54

Fluke v3000 FC Wireless AC Voltage Module

Measure up to 1000 V True-RMS AC Use as a standalone meter or as part of the system Use the logging function for recording and saving up to 65,000 readings

Fluke v3001 FC Wireless DC Voltage Module

Measure up to 1000 V DC Use as a standalone meter or as part of the system Use the logging function for recording and saving up to 65,000 readings

Specifications Fluke 3000 FC Wireless Digital Multimeter

Maximum voltage between any terminal and earth ground: 1000 VDC or AC rms Ω fuse protection from A inputs: 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only Display (LCD)

Update rate: 4/sec Volts, amps, ohms: 6000 counts Frequency: 10,000 counts Capacitance: 1,000 counts

Battery type: Three AA Alkaline batteries, NEDA 15A IEC LR6 Battery life: 250 hours minimum RF communications

Band: 2.4 GHZ ISM Band Open air, unobstructed: Up to 20 m Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5 m

Temperature

Operating: -10°C to 50°C Storage: -40°C to 60°C Temperature coefficient: 0.1 x (specified accuracy) / °C (18°C or 28°C)

Relative humidity

0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C)

Altitude

Operating: 2,000 m Storage: 12,000 m

Electromagnetic compatibility

EMI, RFI, EMC, RF: EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID: FCC: T68-FDMMBLE IC: 6627A-FDMMBLE

Safety compliance

ANSI/ISA 61010-1 / (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-1-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1: 2010

Certifications: CSA, FCC, CE Ingress Protection (IP) rating: IP54 Pollution degree: 2 Size (H x W x L): 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in) Weight: 340 g (12 oz) Warranty: Three years

Fluke v3000 FC Wireless AC Voltage Module

LCD w/ backlight: 3½ digits, 6000 counts, updates 4/sec Battery type: 2 AA, NEDA 15 A, IEC LR6 Battery life: 400 Hours Memory: Record up to 65000 readings RF communications: 2.4 GHZ ISM Band RF communication range

Open air, unobstructed: Up to 20 m Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m

Operating temperature: -10°C to +50°C Storage temperature: -40°C to +60°C Temperature coefficient: 0.1 x (specified accuracy) / °C ( 18°C or 28°C) Operating humidity: 90% at 35°C, 45% at 40°C, 45% at 50°C Altitude

Operating: 2,…
