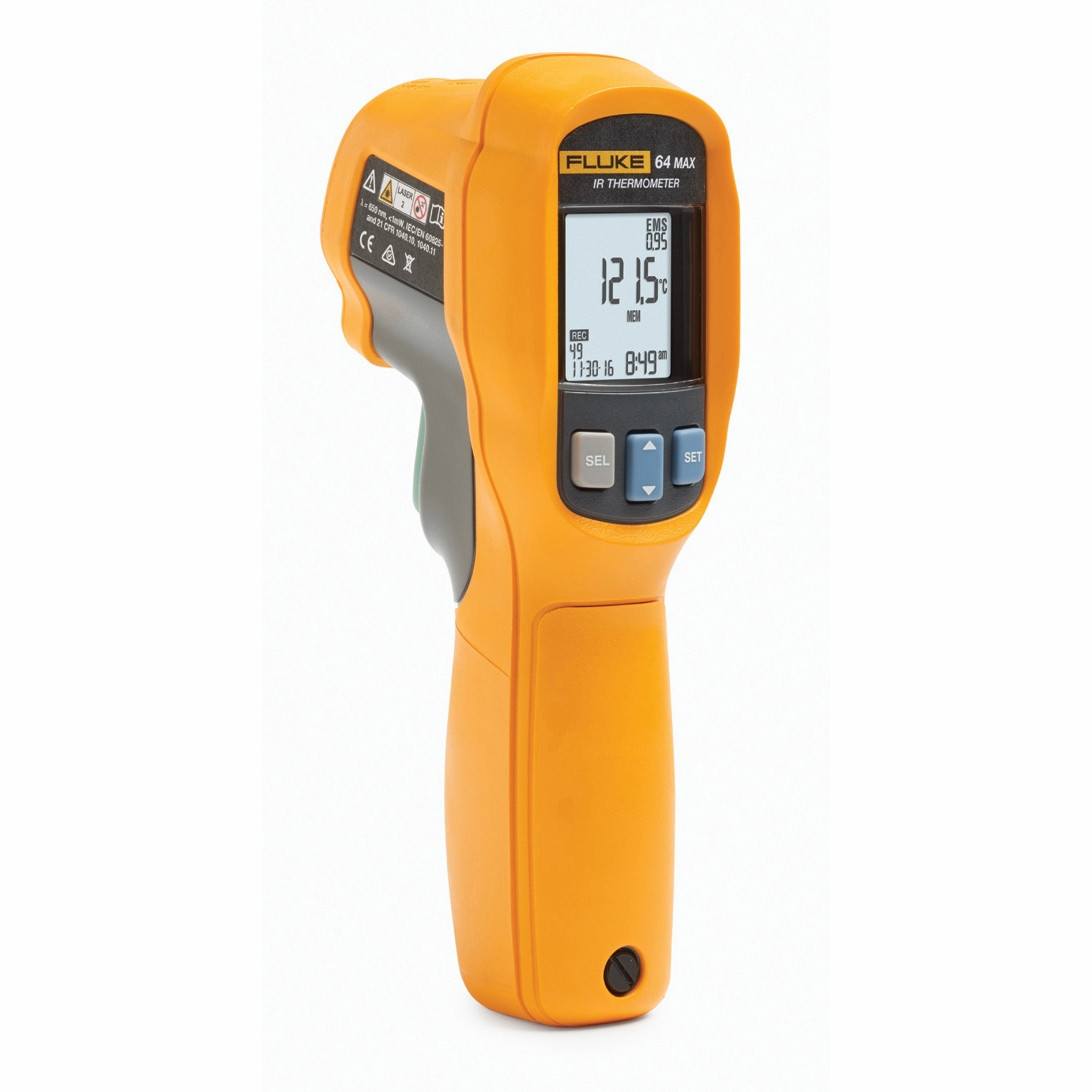

Fluke 64MAX - IR Thermometer

The Fluke 64 MAX thermometer has the precision you need to do your job accurately and will not break the budget. Designed and tested to survive a 3 meter drop, you can count on this lightweight, compact infrared thermometer to work when you need it to work – even in the harshest environments and when you're not able to be there. Features

Precise laser technology for more accurate and repeatable measurements Flashlight and large, easy-to-read backlit LCD display for easy viewing even in dark environment IP54 rated for extra protection against airborne contaminants Get your tool to work when you can't - set time and desired interval between measurements and Auto Capture will capture spot temperatures unattended 99 data point logging 30 hour battery life so your tool can perform as long as you need it to Displays the minimum, maximum or average temperature, or the difference between two measurements Hi and Lo alarms for rapid display of measurements outside set limits Small and lightweight design fits easily into your tool box

Specifications

Temperature Range

Range: -30°C to 600°C (-22°F to 1112°F) Accuracy (calibration geometry with ambient temperature 23°C ±2°C):

±1.0°C or ±1.0% of reading (whichever is greater) ±2.0°C at -10°C to 0°C ±3.0°C at -30°C to -10°C

Response Time (95%): 500 ms (95% of reading) Spectral Response: 8 to 14 microns Emissivity: 0.10 to 1.00 Optical Resolution: 20:1 (calculated at 90% energy) Display Resolution: 0.1°C (0.2°F) Repeatability: ±0.5% of reading or ±0.5°C (whichever is greater)

Data & Capture

Auto Capture: Set time and interval to capture up to 99 measurements Internal Memory: 99 data point logging capability

Power

Power: 1x AA battery Battery Life: 30 hours with laser and backlight on

Physical Specifications

Weight: 255 g (8.99 oz) Size: 175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in)

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature: -20°C to 60°C (-4°F to 140°F) (without battery) Operating Humidity: Non-condensing ≤10°C (50°F) ≤90% RH @ 10°C to 30°C (50°F to 86°F) ≤75% RH @ 30°C to 40°C (86°F to 104°F) ≤45% RH @ 40°C to 50°C (104°F to 122°F) Operating Altitude: 2,000 m above mean sea level Storage Altitude: 12,000 m above mean sea level Drop Test: 3 meters

Standards & Safety

Implement Standard: Q/ASF01 Compliance: IEC 61010-1 Pollution Class 2 Laser Safety: IEC 60825-1 Class 2, 650 nm, 1 mW Ingress Protection Rating: IP54 per IEC 60529
